High Voltage 110kv 45FT Steel Electric Pole Anti Corrosion

Product Categories

Jiangsu hongguang steel pole co.,ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

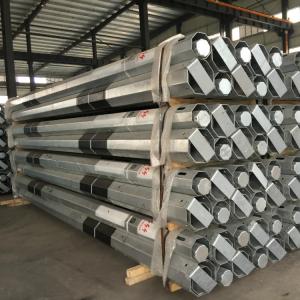

High Voltage 110kv 45FT Steel Electric Pole Anti Corrosion

Name: High Voltage 110kv 45FT Steel Electric Pole Anti Corrosion
Brand: JSHG
Price: 1 USD

Quality High Voltage 110kv 45FT Steel Electric Pole Anti Corrosion wholesale

Brand Name : JSHG

Model Number : HG-SP-110KV

Certification : ISO/CNAS/IAF/CA

Place of Origin : China

MOQ : One 40 HQ Container

Price : negotiation

Payment Terms : L/C, T/T or Western Union

Supply Ability : 3,000 Metric Tons per Month

Delivery Time : 2 weeks per container after PO / drawing / prepayment confirmed

Packaging Details : * Covered by Plastic Wrap or Mat or according to client's requests. * The Loading Pcs of Each Container could be calculated according to client's specification and data.

Material : Q235/SS400

Welding Technique : Automatic submerged arc welding

Surface Treatment : Hot dip galvanizing and powder painting

Anti-wind Capacity : 36.9m/s

Coating Layer Thickness : ≥100um

Steel Pole Height Options : 3.5m~15m

Keyword : Steel Electric Pole

Contact Now

110kv Hot Dip Galvanized Steel Electric Power Pole For Transmission Line 45FT

Material: High-quality steel Q235/SS400 from BAOSTEEL Group
Welding Technique: Automatic submerged arc welding
Surface Treatment: Hot-dip galvanizing and powder painting
Welding Standard: GB11345 Grade II
The thickness of Zinc Coating:≥ 86um
Adhesive Force of Zinc Coating: GB2694-88
Anti-wind Capacity: 36.9m/s
Anti-corrosion Lifetime: ≥20 years
Coating Layer Thickness: ≥100um
Adhesive force: GB9286-880 Hardness ≥2H
Steel Pole Height Options:3.5m~15m
Street Lighting Poles Type Options: Conical, polygonal

Specifications:

Height (m)	Diamention (mm)	Thickness (mm)	Flange size (mm)
6	60/140	2.75	24024012
7	60/170	3	28028012

8	70/180	3	28028014
9	70/170	3.5	30030016
10	70/170	3.5	30030016

Height	25FT~70FT
Suit for	Electric Power Transmission and Distribution/ Steel Tower Pole
Shape	Polygonal
Material	Normally : Q235B/ASTMA36/ENS235JR,Yeild Strength≥235MPa; Q345B/ASTMA572/ENS355J2, Yeild Strength≥345MPa
Power Capacity	10kV to 220kV
Tolerance of the dimension	According to client’s requirement
Surface treatment	Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement
Joint of Poles	Slip joint, flanged connected
Standard	ISO9001:2008
Length of per section	Within 14M once forming
Welding Standard	AWS(American Welding Society)D 1.1
Thickness	2~30mm
Production Process	Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages

Welding

Welding complies with AWS D1.1 standard.
CO2 welding or submerged arc auto methods
No fissure, scar, overlap, layer or other defects
Internal and external welding makes the pole more beautiful in shape
If customers need any other requirements of welding, we also can make adjustment ad your request

High Voltage 110kv 45FT Steel Electric Pole Anti Corrosion

Engineering and Design Management:

“Design and technology,professional and common, software and hardware” is JSHG‘s electric post design philosophy. We have established a close cooperative relationship with design institutions and companies in the same industry. Through close communication and explorations, our company took in advanced design concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.

High Voltage 110kv 45FT Steel Electric Pole Anti Corrosion
